Application fields and advantages of planetary gearboxes

Date: 2025-03-20

I. Application fields of planetary gearboxes
(I) Aerospace
In the aerospace field, planetary gearboxes play a vital role. For example, in the transmission system of an aircraft engine, a planetary gearbox can convert the high-speed, low-torque output of the engine into a low-speed, high-torque power suitable for driving a propeller or fan. It ensures the best match between the engine and the propeller or fan, allowing the aircraft to maintain efficient propulsion performance in different flight phases (such as takeoff, cruising, landing, etc.). At the same time, in the main reducer of a helicopter, a planetary gearbox is used to transmit the power of the engine to the rotor system. Its high precision and high reliability can withstand the huge torque and complex loads generated by the helicopter rotor, ensuring the flight safety and stability of the helicopter.

(II) Automotive industry
Planetary gearboxes are one of the core components of automatic transmissions. In automatic transmission vehicles, it achieves multiple speed ratios through different planetary gear combinations, allowing the vehicle to automatically switch gears under different driving conditions. For example, when the vehicle starts, the planetary gearbox can provide a large torque output to help the vehicle start smoothly; when driving at high speed, it can switch to a higher transmission ratio to reduce the engine speed and improve fuel economy. In addition, planetary gearboxes are also widely used in the power coupling system of hybrid vehicles, effectively integrating the power of the engine and the motor, achieving seamless power switching and efficient transmission, and improving the vehicle's power performance and energy efficiency.

(III) Industrial machinery field
In industrial machinery, planetary gearboxes are widely used. In metal processing machine tools, it is used to drive the spindle, which can achieve high-precision speed regulation and torque transmission, ensuring the accuracy and surface quality of machine tool parts. In the papermaking, printing and other industries, planetary gearboxes are used to drive large rollers. Their stable transmission performance and high torque output capacity can ensure the stability of the rollers at high speeds, avoiding wrinkles and uneven stretching of paper or printed products. In the robot joint drive system, the planetary gearbox can provide high torque density and high-precision motion control, making the robot's joint movements more flexible and accurate, meeting the requirements for high-precision operation of robots in industrial automation production.

(IV) Ship field
In the ship transmission system, planetary gearboxes can be used in the ship's propulsion system and various auxiliary equipment. For some large ships, planetary gearboxes can transfer the power of the main engine to the propeller to achieve ship propulsion. It can optimize the ship's propulsion efficiency by adjusting the speed ratio under different sea conditions and sailing speeds. At the same time, in the ship's steering gear, anchor windlass and other auxiliary equipment, planetary gearboxes also play an important role, providing reliable torque output and power transmission, ensuring the normal operation of these equipment, and ensuring the navigation safety and operational performance of the ship.

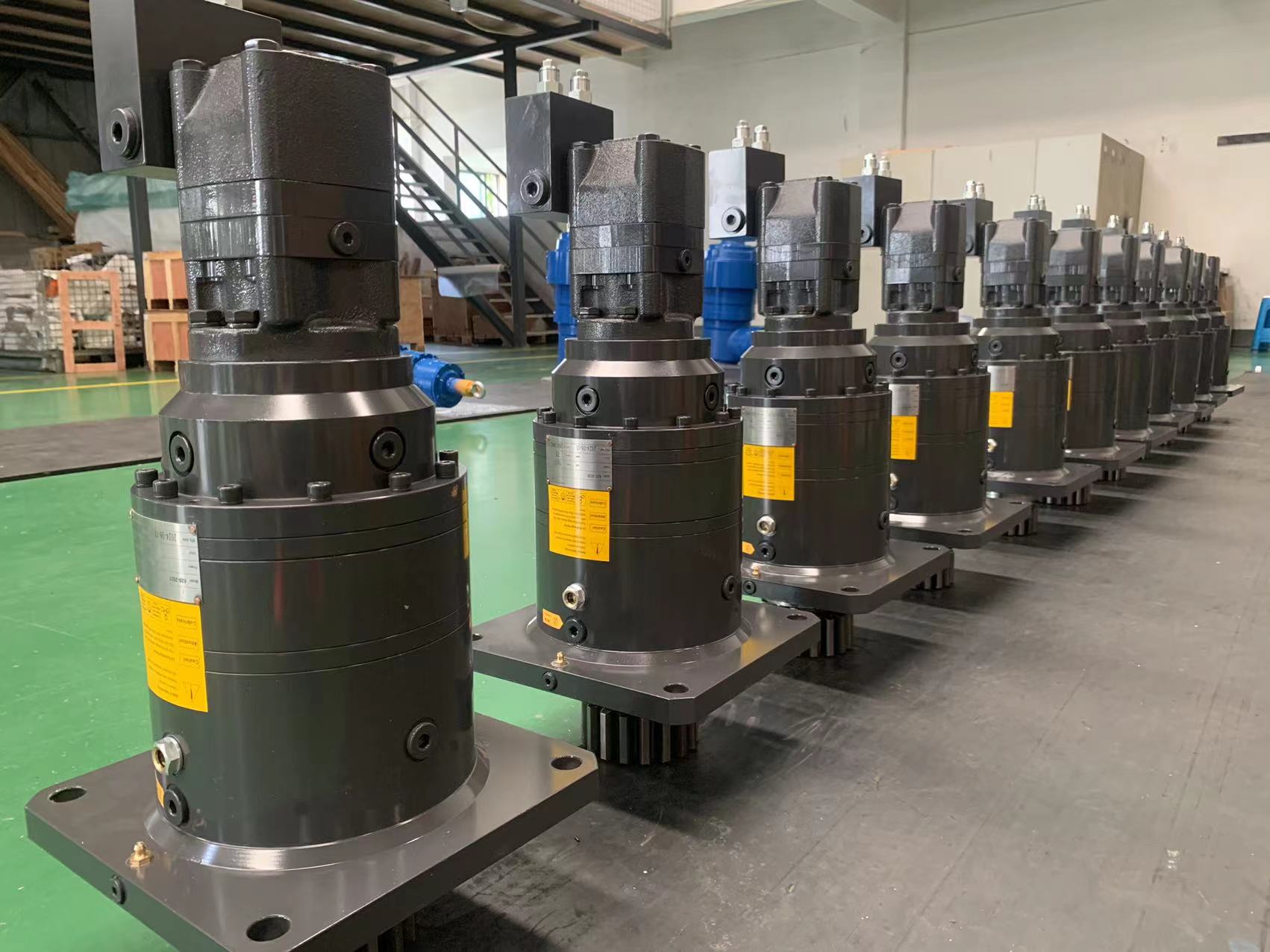

Planetary Gearbox for Gear Motors

2. Analysis of the advantages of planetary gearboxes
(I) High torque density
Planetary gearboxes have unique structural characteristics. Their multiple planetary gears are distributed around the central sun gear and the inner ring gear, which can transmit larger torque with smaller volume and weight. Compared with traditional parallel shaft gearboxes, planetary gearboxes can be smaller in size and lighter in weight under the same torque output. This advantage enables it to perform well in space-constrained application scenarios, such as in the engine compartment of a car, where the compact planetary gearbox can better adapt to the limited space while meeting the needs of vehicle power transmission; in the aerospace field, weight reduction is crucial to improving flight performance and reducing energy consumption, and the high torque density characteristics of the planetary gearbox make it an ideal transmission device choice.

(II) High transmission efficiency
The transmission efficiency of the planetary gearbox is relatively high, generally reaching more than 90%. Its efficient transmission performance is mainly due to its reasonable gear meshing method and compact structural design. In the planetary gearbox, multiple planetary gears are meshed at the same time, making the power transmission more uniform and reducing the energy loss during the transmission process. In addition, the lubrication and cooling system design of the planetary gearbox is also relatively optimized, which can effectively reduce the friction and heat generation between the gears and further improve the transmission efficiency. High transmission efficiency means that under the same input power, more effective power can be output, thereby reducing energy consumption and improving the energy utilization efficiency of the equipment, which is of great significance for energy conservation, emission reduction and reducing operating costs.

(III) Multi-speed ratio output
The planetary gearbox can achieve multiple speed ratio outputs by changing the combination and meshing method of the planetary gears. This multi-speed ratio feature enables it to flexibly adapt to different workloads and operating speed requirements. In automotive automatic transmissions, the multi-speed ratio output of the planetary gearbox can automatically switch gears according to the vehicle's driving conditions, so that the engine always runs at the optimal working point, improving the vehicle's power performance and fuel economy. In industrial machinery, multi-speed ratio planetary gearboxes can adjust the operating speed of the equipment according to different processing techniques and equipment requirements, achieving precise processing control and optimizing production efficiency. This flexible speed ratio adjustment capability is one of the indispensable advantages of planetary gearboxes in many application fields.

(IV) High reliability
Planetary gearboxes are usually made of high-quality materials and undergo precise processing and assembly processes to ensure their high reliability and service life. Its structural design is reasonable, the meshing accuracy between gears is high, and it can withstand large loads and impact forces. At the same time, the planetary gearbox is also equipped with a complete lubrication and sealing system, which can effectively prevent impurities from entering and lubricating oil leakage, reducing the risk of gear wear and failure. In fields with extremely high reliability requirements such as aerospace and automobiles, planetary gearboxes have undergone rigorous testing and verification and are able to maintain stable performance in harsh working environments and long-term operating conditions, providing reliable protection for the normal operation of equipment.
